Multistage/Horizontal/Vertical pump
A Multistage Pump is a centrifugal pump with two or more impellers (stages) connected in series. Each stage increases the pressure, making the pump ideal for high-pressure applications such as RO plants, boiler feed, and industrial pressure boosting.
Features :

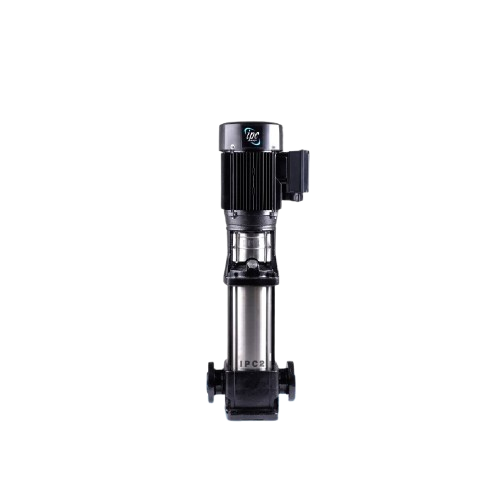

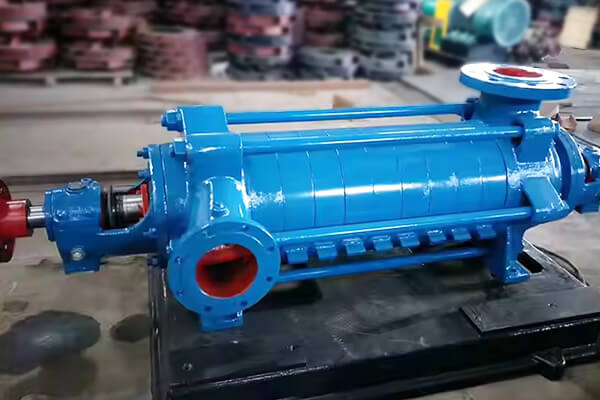

Size:Multistage pumps come in horizontal and vertical designs.
Typical Size Range
Inlet/Outlet Sizes
25 mm
32 mm
40 mm
50 mm
65 mm
80 mm
Capacity:Flow Capacity
3 m³/hr to 150 m³/hr
(Higher flows available for large industrial pumps)
Head/Pressure
30 meters to 300+ meters
High-pressure models: up to 600 meters
Motor Power
1 HP to 100 HP depending on size and pressure
Temperature Handling
0°C to 120°C (standard)
High-temperature models available for boiler feed
Construction:Working Principle
Multiple impellers connected in series increase pressure step-by-step, giving very high head at moderate power.
Key Construction Features
Multistage impellers mounted on a single shaft
Diffusers between each stage for smooth flow
Heavy-duty bearing housing
Mechanical seal or gland packing
Stainless steel body/impellers
Base-mounted or vertical configuration
Applications: Materials: Water & Industrial
RO plant feed pump
Industrial pressure boosting
boiler feed systems
High-rise building water supply
Cooling water circulation
